A prefab modern design steel overhead viaduct steel structure refers to a pre-engineered and prefabricated steel structure that is used to construct a portable bridge, specifically an overhead viaduct. Here are some key points to consider:
Structural Integrity: The steel structure is designed to meet the necessary structural integrity requirements for a bridge, including load-bearing capacity, stability, and safety. It will be designed and engineered to withstand the anticipated loads and forces encountered during bridge use.
Compliance with Standards: The design and construction of the portable bridge using the steel overhead viaduct structure should comply with relevant engineering standards and regulations. This ensures that the bridge meets safety requirements and can be used with confidence.
Installation and Assembly: The steel structure components of the viaduct are typically designed for easy and efficient assembly on-site. Detailed assembly instructions and guidelines should be provided to ensure proper installation.
When considering a prefab modern design steel overhead viaduct steel structure for a portable bridge, it is important to work with experienced engineers, architects, and contractors who specialize in bridge construction. They will ensure that the structure meets the required standards, is safe to use, and can be easily assembled and disassembled as needed.
Product Parametes

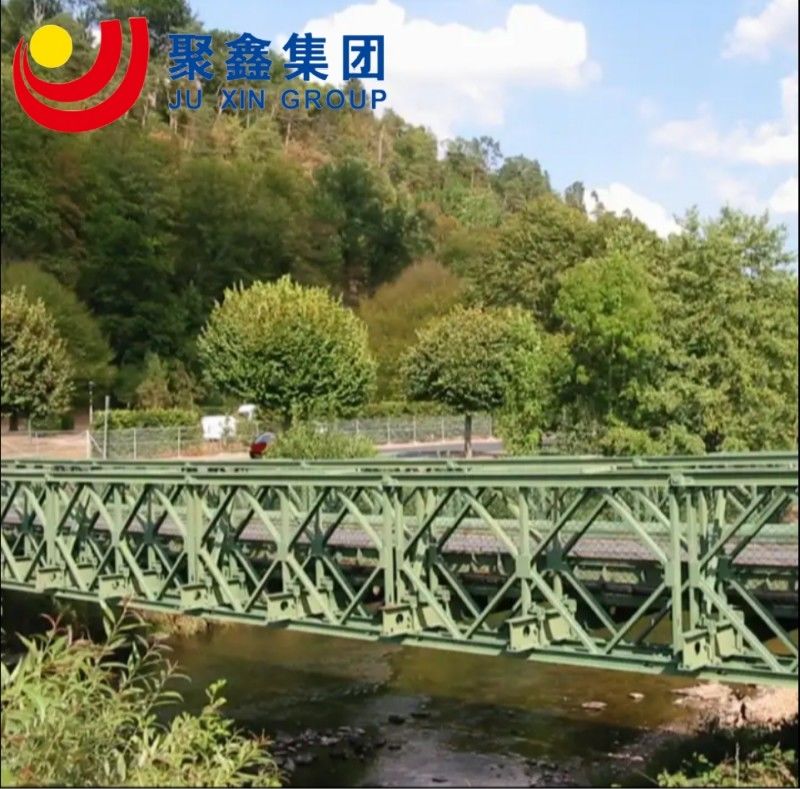

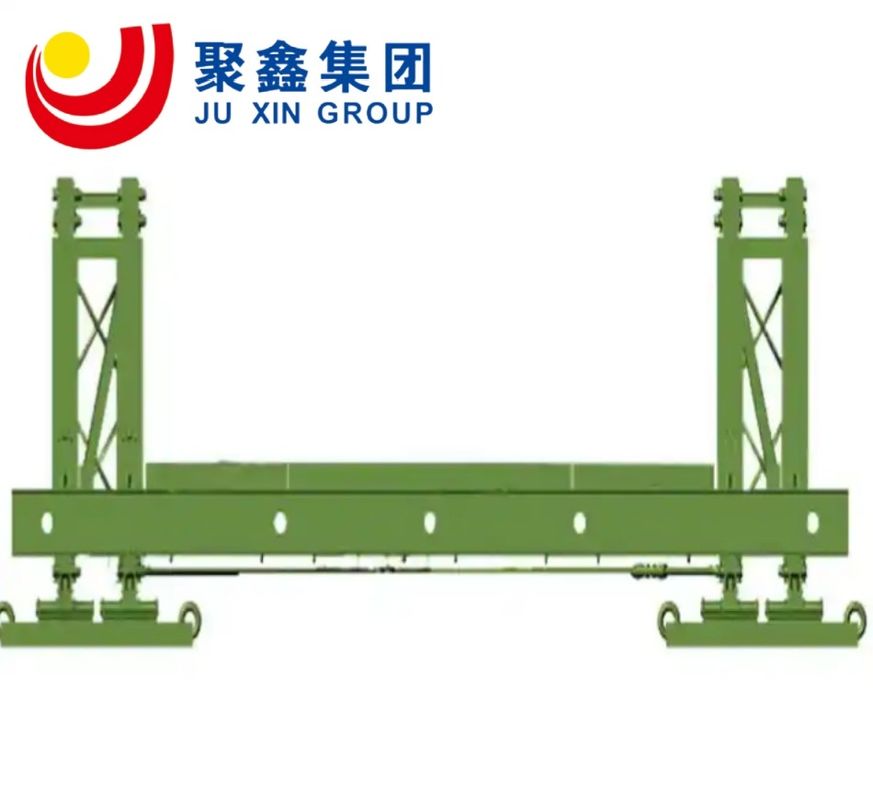

| Specifications of 200type Bailey Bridge |
| Lanes |
Single Lane |
Double |
customized |
| width |
4.2 |
7.35 |
No Limitation |
| Maximum span |
30-230feet (10feet/section) |
30-180feet
(10feet/section)
|
Customized |
| Bridge deck |
Steel |
| Steel Grade |
Q345B |
| Loading Capacity |
According to The Requirements, Such as HS20-44/Truck 20 |
| Corrosion |
Original Painted or Hot Dip Galvalized |
| Advantages |
Lower Price/Convenient Transportation/ Easy Asembly and
Erection
|
Company Profile
Shandong Juxin Steel Structure Co., ltd located in Jinan, Shandong,a city famous for its long history and Culture The company, is a professional enterprise with grade II certificate on contracting steel structure construction. By the time it has 800 staff members, of which 30 per cent are technical and managerial workers .The company covers an area of 13,000 square kilometers and the workshop occupies 13,000 square kilometers. The company is mainly engaged in constructing steel structure workshops, stadiums, large markets,residence buildings, office buildings, bridges and decorative steel structure engineering. It also undertakes the processing and manufacturing of chemical steel structure and power factories.
Product Description
Our advantage
With own manufacturing operations complimented by strategic sourcing, we are able to cater for a full range of product needs:
1. Sheet metal fabrication, such as steel bases, steel structure, support, box, enclosure, etc
2. CNC machining machinery part. Such as OEM/ODM flanges, shaft, connector etc.
3. Metal forging parts
4. Metal casting parts
5. Livestock parts
Smart operational structure ensures superior quality and service:
1. ISO 9001 certified facilities
2. Low overheads due to effective and lean structure
3. Multi-layered QC - strong track record in delivery performance
4. Professional, multi-lingual customer service
5. Technical engineering support
6. Flexible payment terms
Certifications
Customer Case
We will consider the standards and specifications of each region. Therefore, by choosing us, you will obtain steel structure products that fully comply with the legislative requirements of your country/region. At the same time, we have many experiences in industrial buildings, public buildings, bridge buildings, marine engineering, livestock building, high-rise buildings, aerospace, military construction, and other fields.
We will carefully study your specific needs and specifically design and manufacture load-bearing structures suitable for your project.
How to consult us about your bridge? Refer to the items below.
1. Usage: military steel bridge, traffic engineering,dangerous bridge reinforcement or other aspects. etc.
2. Total length: 15m- 60m or others.
3. Quantity of the span: single span or double span.
4. Width: single lane 4.2m, double lane 7.35m.
5. Load: HS15-HS25 or others.
6. Surface treatment: painting or galvanization
It is better to provide drawings.
