Product Parametes
|
|
Steel Structure Parts (Q235 or Q355) Hot galvanized or painted.
|
(1) Steel Column: H Section Steel
(2) Steel Beam: H Section Steel
(3) Withstand Wind Column: H Section Steel
(4) Connected beam: Circular Tube
(5) Roof Purline: cold formed galvanized C Section Steel or Z Section Steel
(6) Wall purline: cold formed galvanized C Section Steel or Z Section Steel
(7) End Wall purline: C Section Steel or Z Section Steel
|
|
|
|
(1) Wall panel: (below is selectable)
1) 50mm, 75mm or 100mm thickness EPS sandwich panel
2) 50mm, 75mm or 100mm thickness Rockwool sandwich panel
3) Corrugated Galvanized Steel sheet with different Color
(2) Roofing panel: (below is selectable)
1) 50mm, 75mm or 100mm thickness EPS sandwich panel
2) 50mm, 75mm or 100mm thickness Rockwool sandwich panel
3) Corrugated Steel Sheet, and insulating layer if need.
|
|
|
|
(1) External Door ( Rolled up door or Sliding door )
1) Over-heat Orbit Sliding Door with double open
2) Galvanized steel opening by power-operated Roller Door
(2) Internal Door:
50mm Thickness EPS sandwich panel
(3) Window:
PVC Window or aluminum alloy window frame with glass.
|
|
|
|
(1) Galvanized water channel:
1-3mm thickness galvanized steel water channel
(2) Down spout: ∅110 PVC Down spout with Accessorie
|
|
|
|
(1) Purline draw bar: ∅12
(2) Horizontal Bracing: ∅20 Circular Tube
(3) angle steel: L Steel
(4) roof tie bar: ∅89*3.5
(5) Column
Bracing:
|
|
|
|
(1) Ventilating device
(2) Crane beam
(3) Canopy
(4) Bolt: Foundation bolt, High strengthen bolt, Normal bolts.
|
Company Profile
Shandong Juxin Steel Structure Co., ltd was founded in 2006, we are a national level enterprise specializing in the design, installation, and maintenance of steel structure buildings, our company has multiple production lines,own technical personnel,professional installation and after-sales service team,we strictly implement the ISO9001 quality assurance system to strive for high-quality projects.since its establishment 30 years ago, Shandong Juxin Group has cooperated with customers in more than 30 countries and regions at home and abroad, and won unanimous praise from customers!
Product Description
Steel structure building is a popular type of building system now, its main load-bearing members are made of steel, including column, beam, foundation and roof truss, while roof and wall using variety of materials, such as sandwich panel, steel sheet, wire mesh, foam cement board, ALC board for different building application.
It widely use for steel framing farm warehouse, storage house, prefab steel structure warehouse for machines, logistics, trucks and so on. It can be built very fast and will not influenced by weather, steel material also will be more durable than traditional construction and the total cost is more competitive. Certainly steel structure building also can be combined with concrete or bricks to meet different customers' different requirement.
Our advantage
We have three production workshops, one of which has 12 production lines (2 automatic production lines), 2 automatic spraying lines, we have high production efficiency
Certifications

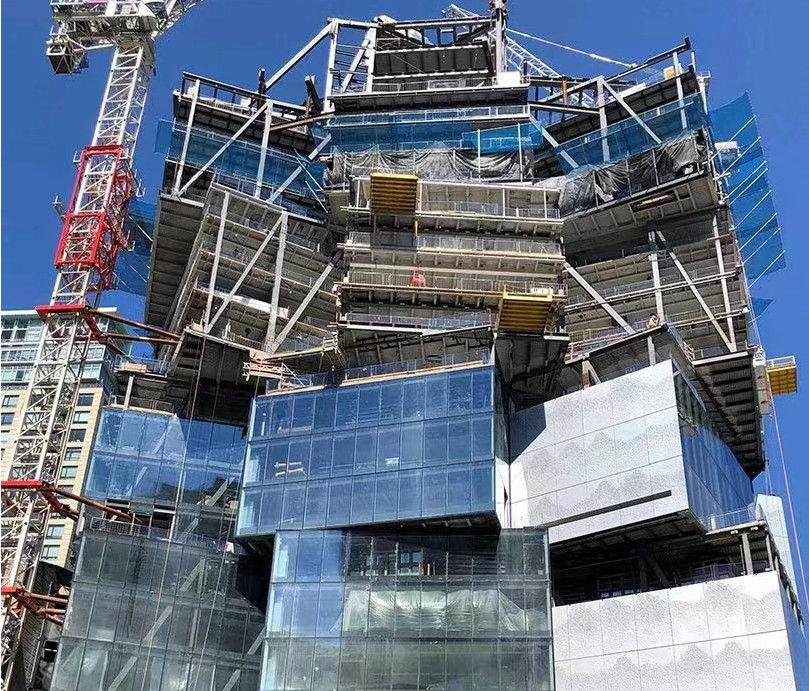

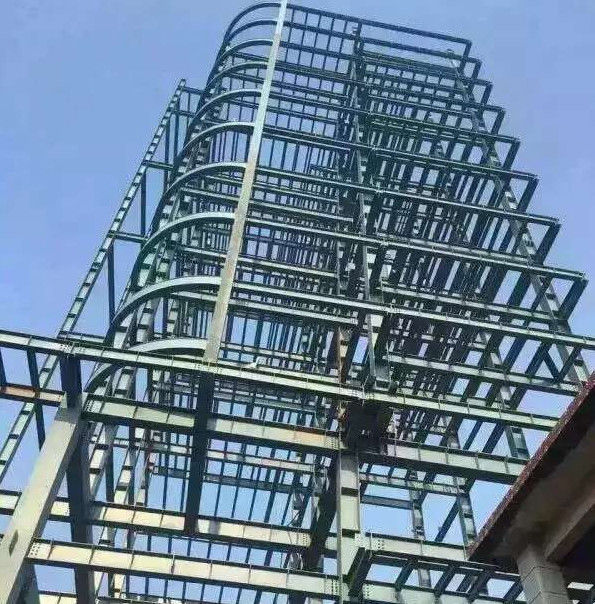

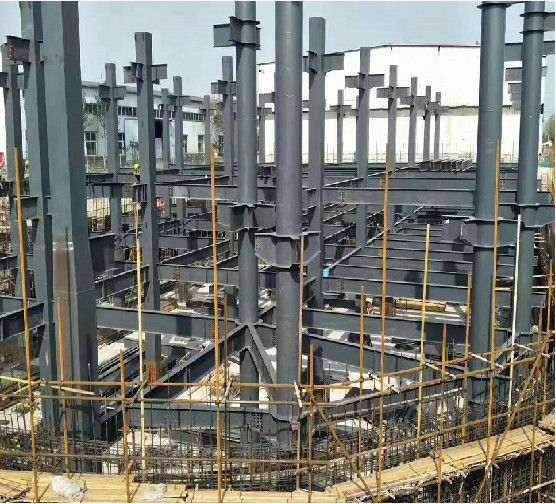

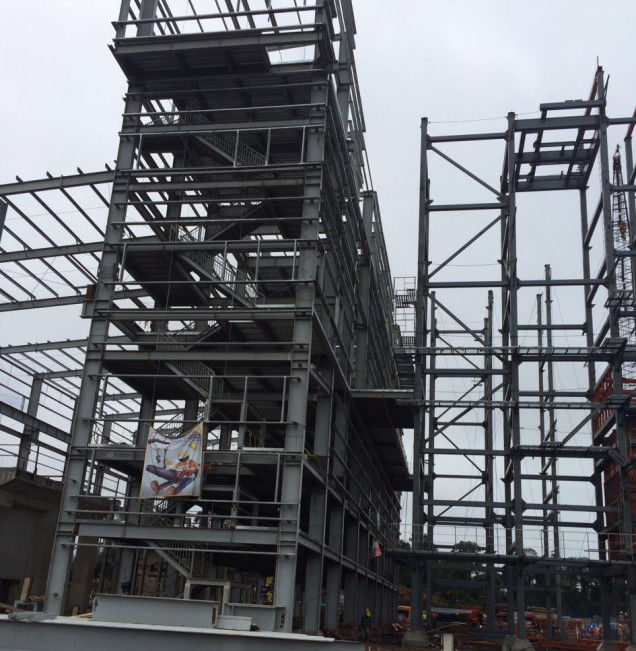

Customer Case
FAQ
Q1:What products do you offer?
A1:We focus on prefab steel structure container house, modular villa for more than 13 years.
Q2:How is your after-sales service?
A2:Any question, welcome to contact us.24 hours available for you.
Q3:What information should we offer before you quote?
A3:you have the drawing, pls give us and tell us the material you use. If no drawing, pls tell us the usage and the size of the house, then we design for you with the good price.
Q4:How long is your delivery time?
A4:Generally it is 15 days after receiving your payment. Of course, it also depends on your quantity.
Q5:Do you have stock for all items?
A5:In general, we have some stock, while if you need a bulk order, we still need time to produce it. Of course, we willinform all details you before your payment.
Q6:If I want a larger space, how can I solve it?
A6:Don't worry, we can disassemble our containers according to the space you want.
Q7:Can you help to purchase the appliances and install inside?
A7:One-stop Service. Please tell me what you need.
